SEAS, 22TFF, H1280

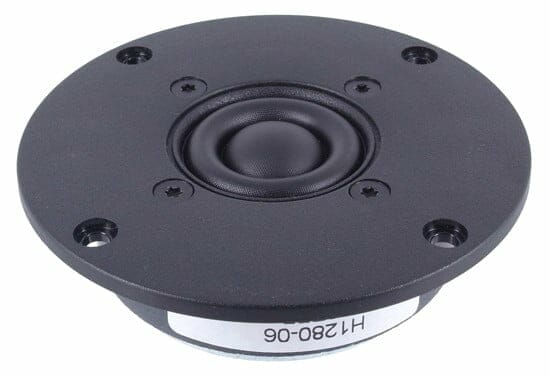

Seas Prestige H1280-06 22TFF tweeter

This tweeter is used in the Anthologies kit.

22TFF is a High Definition soft dome tweeter with a wide surround combining the high-frequency dispersion of a three-quarter-inch dome with the low-frequency characteristics of a one-inch dome. One-piece Sonomex dome and surround allows for very tight production tolerances and high consistency, with smooth and extended frequency response. Voice coil windings immersed in magnetic fluid for increased power handling capacity and reduced compression at high power levels. The chassis is molded from a stiff and stable glass fiber reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet for high efficiency, and good transient response.

• Imp -6 Ohm
• Fs – 1050Hz
• SPL – 91dB
• Outer Dia – 98mm
• Cut Out  – 74mm
• Depth – 24mm

H1280 22TFF Data Sheet
